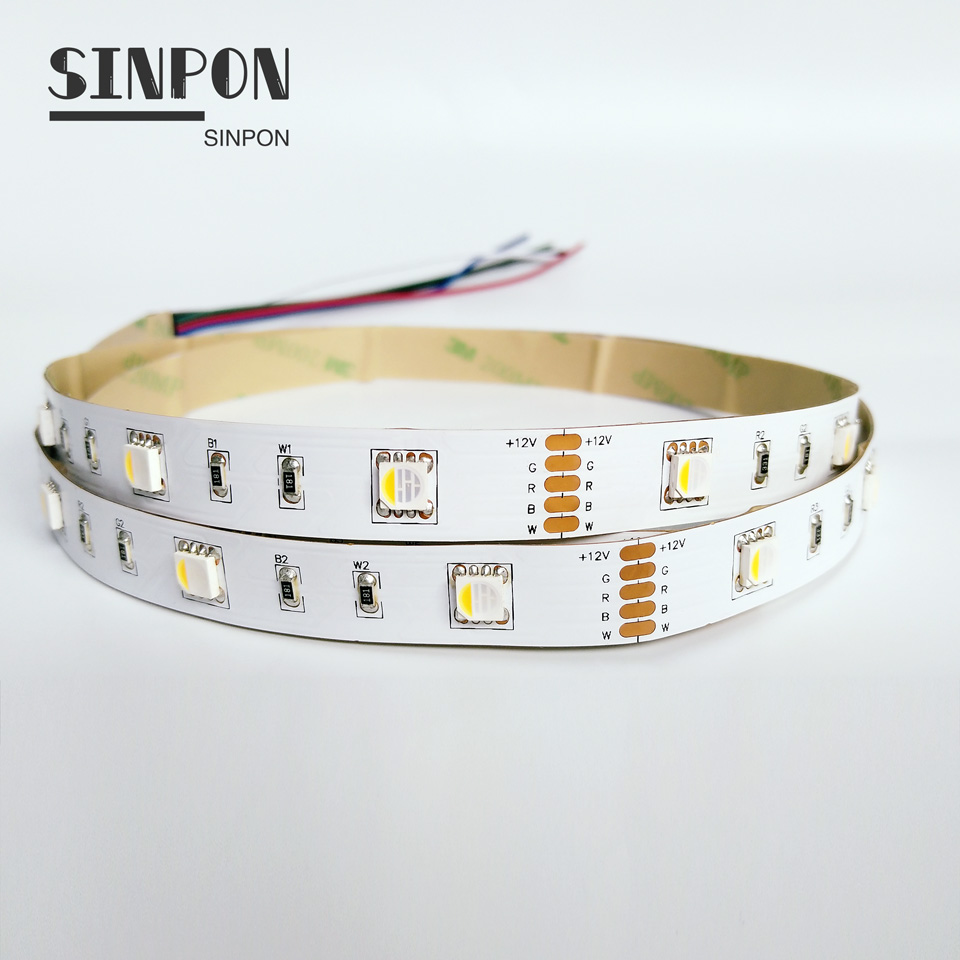

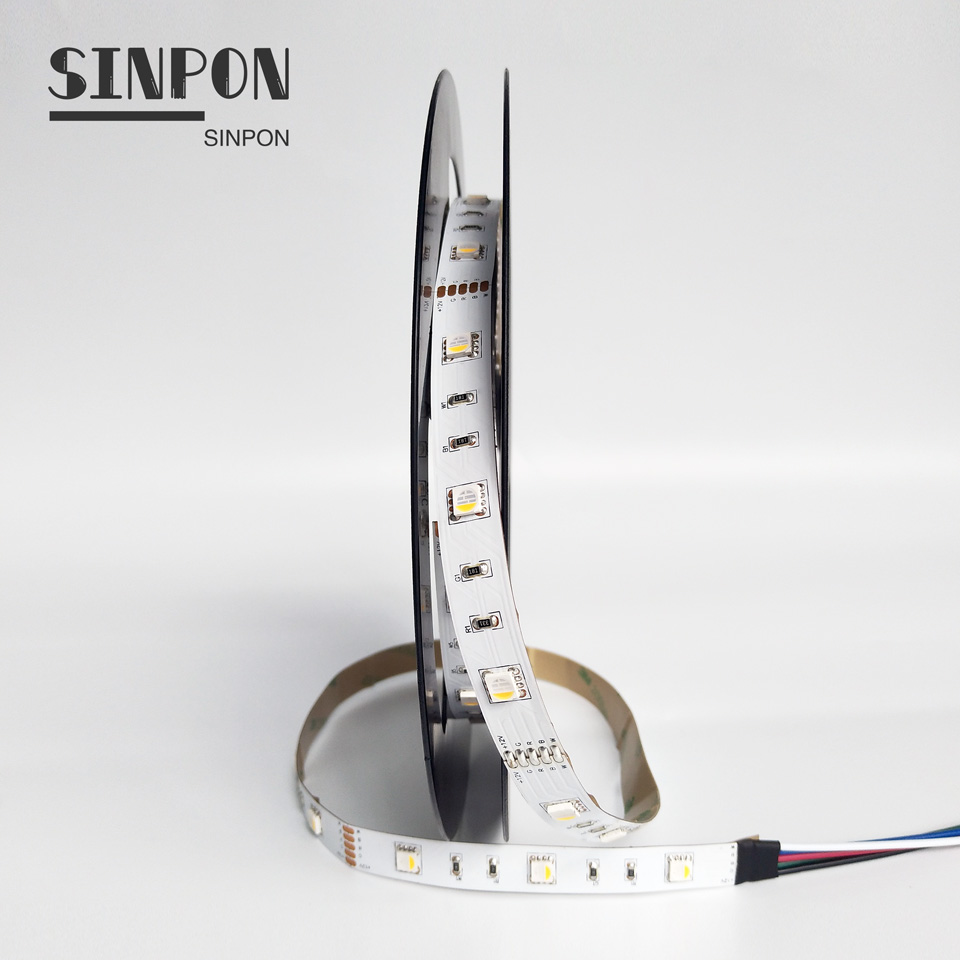

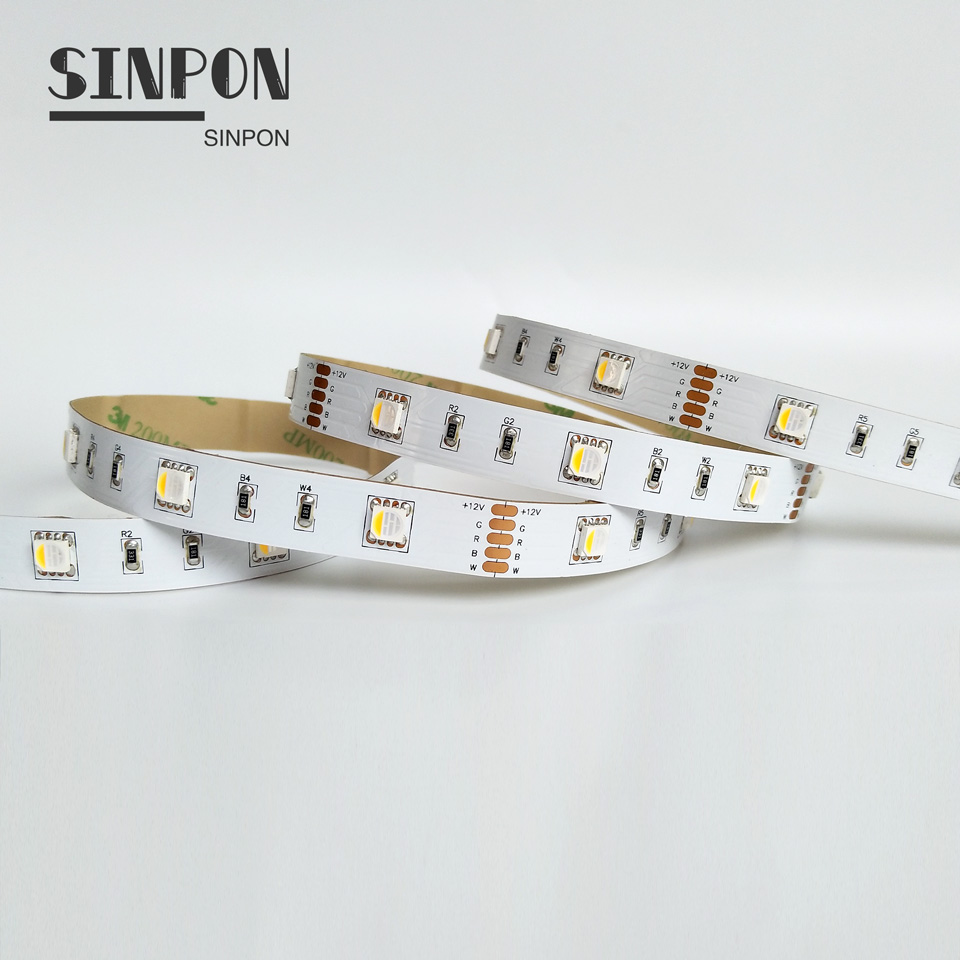

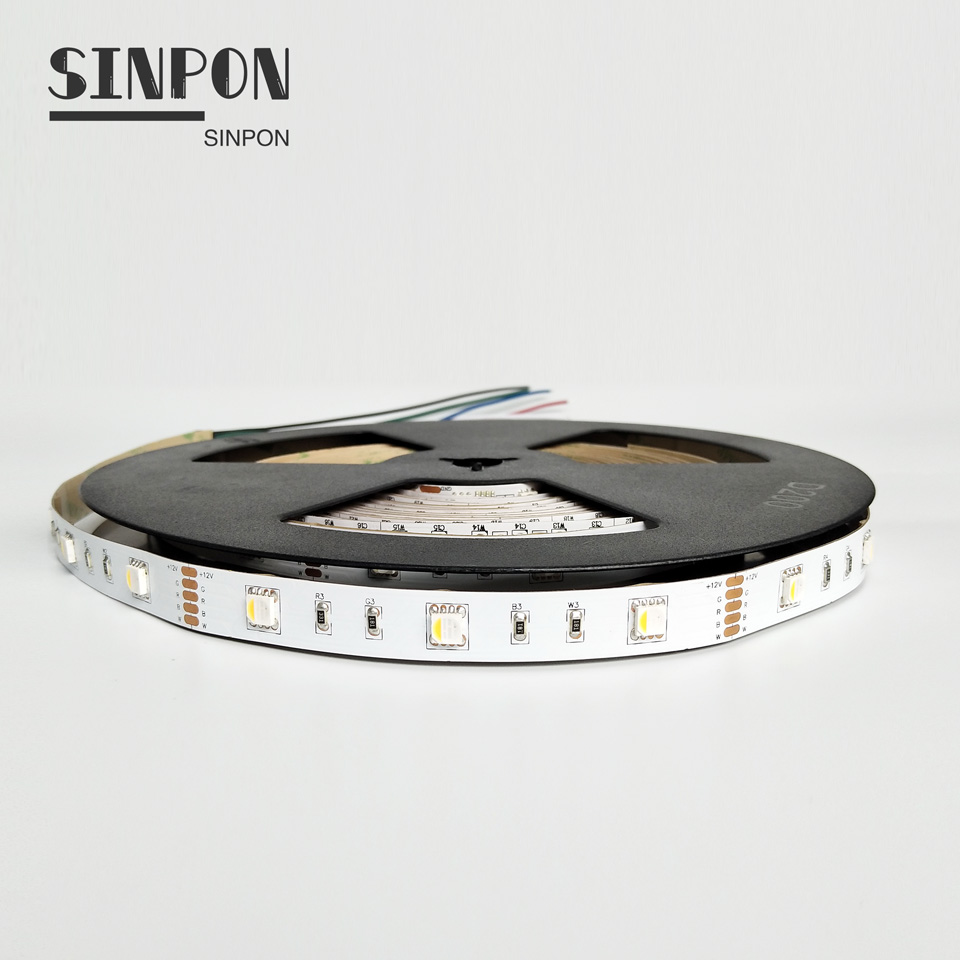

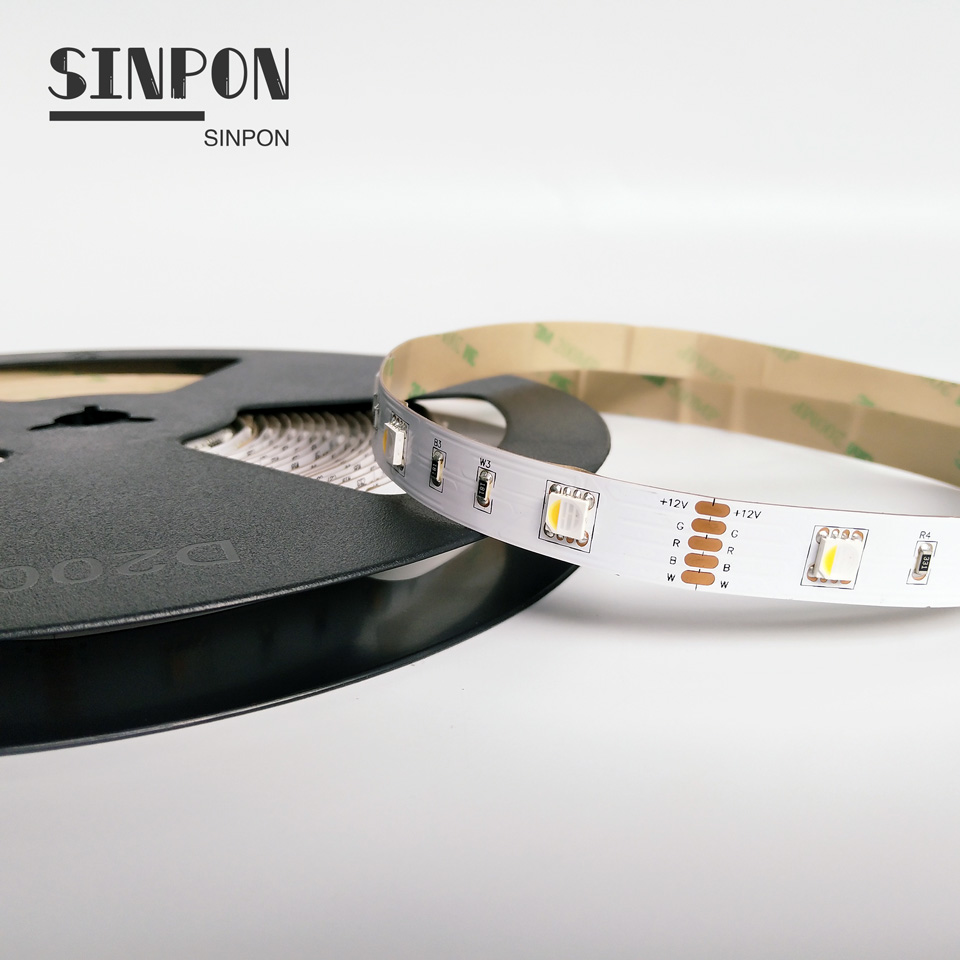

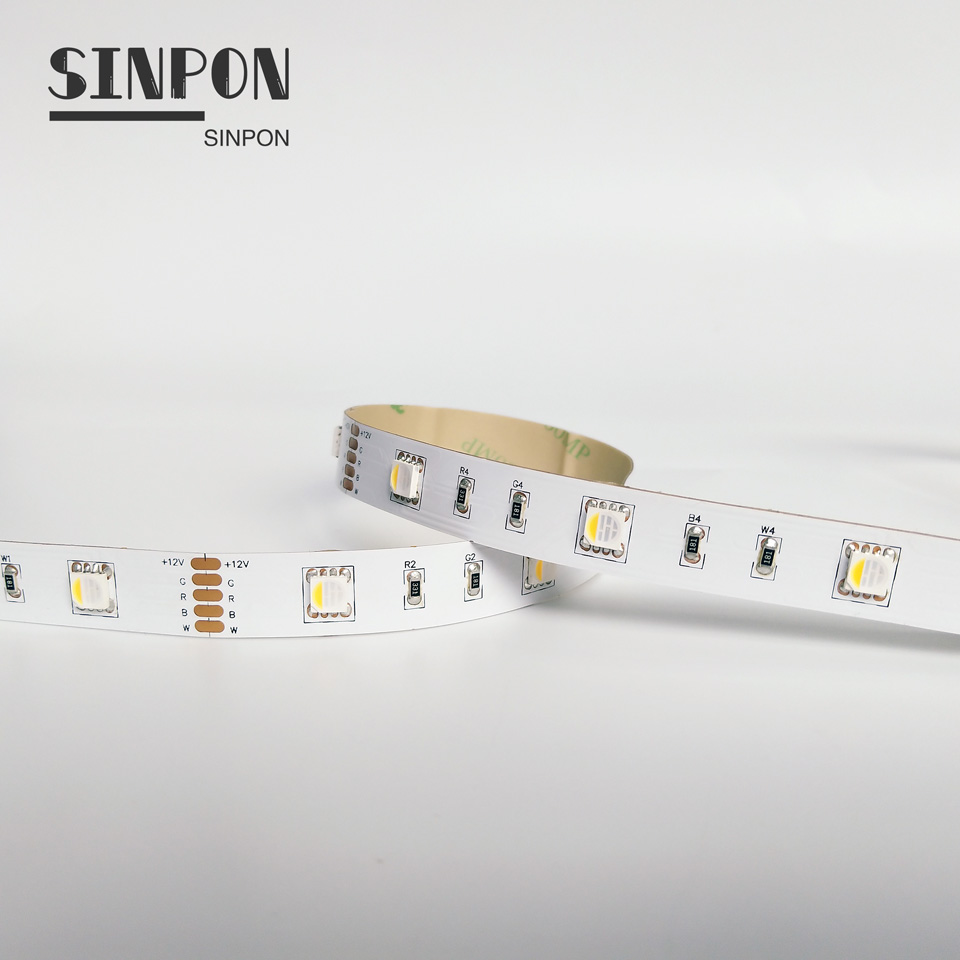

RGBW/30LEDS

RGBW/30LEDS
RGBW/30LEDS RGBW/30LEDS RGBW/30LEDS RGBW/30LEDS RGBW/30LEDS RGBW/30LEDS

◆  TOP SMD5050 chip, high brightness, low decay.

◆  Black/white/yellow FPC are optional.DC12V or DC24V drive, safe usage.

◆  Thick 2oz~3oz copper PCB for excellent thermal management.

◆  Available in IP20,IP65,IP66,IP67,IP68.

◆  3M adhesive backing.

◆  Low power consumption, long life span, free maintenance.

◆  Neutral white, warm white and super warm white for customizing also available in 20 m reels. Please pay attention to the maximum length (5 m) per power input.


Technical Data

TECHNICAL DATA

LED ChipSMD5050
IP classificationIP20/IP65/IP67/IP68

Input Voltage

DC12V/DC24V

Strip PowerMax. 24W/M
Lamp Luminous EfficiencyMax. 170 Lm/W
Maximum quantity per power input5 meters
Average lifetime30,000 hour
Color temperature2700K ~ 7000K
Operating temperature-20° C till +50° C
PCB Width10 mm
min. Bending radius20 mm
LED QTY/M240 Leds/Meter
CuttableAll 5 LEDs (5 cm)
CRI85~95
Warranty3 Years
