SPN-L23V24S50

◆  Available In Custom Sizes & Shapes.

◆  Doubly Layer PCB For Best Heat Dissipation

◆  DC24V Input, CRI>90

◆  High Brightness (2000 Lux ~ 10000 Lux).

◆  Heat Sink Technology To Maximize LED Lifespan (50000 Hours).

◆  Energy Saving And Maintenance Free.

◆  Superior Consistent Light Quality

◆  Highly Adaptable Design Accommodates Virtually Any Application

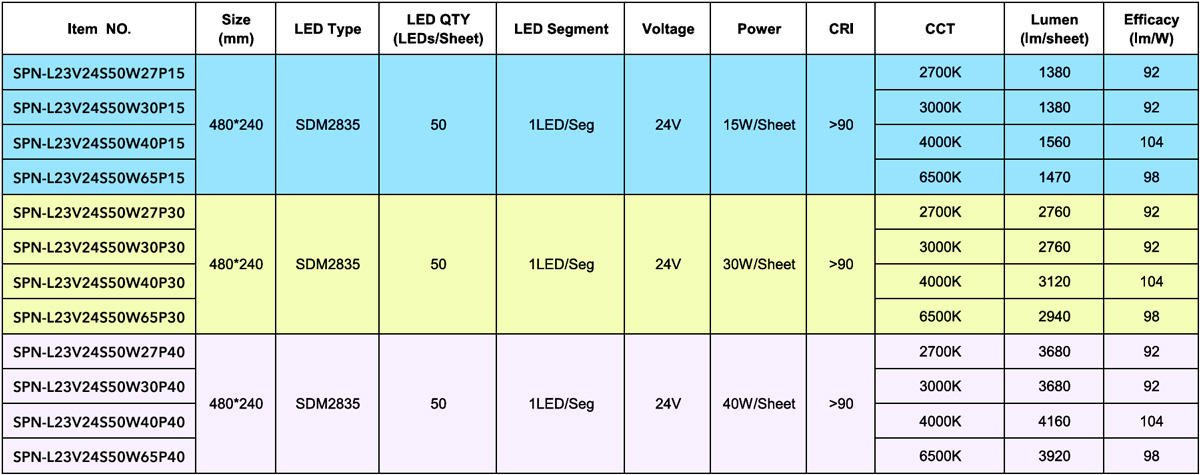

Technical Data

ModelSPN-L23V24S50
Input Voltage
DC 24V
Sheet SizeL: 480mm, W: 240mm
LED QTY/S50 Leds/Sheet
ConnectorR/B Cable Wire
Power15W / 30W / 40W
Light SourceSMD2835 With Lens
Color Temperature2700K / 3000K / 4000K / 6500K
IP ClassificationIP20
CRI90 ~ 95
Thickness6.7mm
Operating Temperature-30° C (-22° F) ~ +40° C (+104° F)
PackageInner PP Bag, Outer Carton
Warranty
3 Years

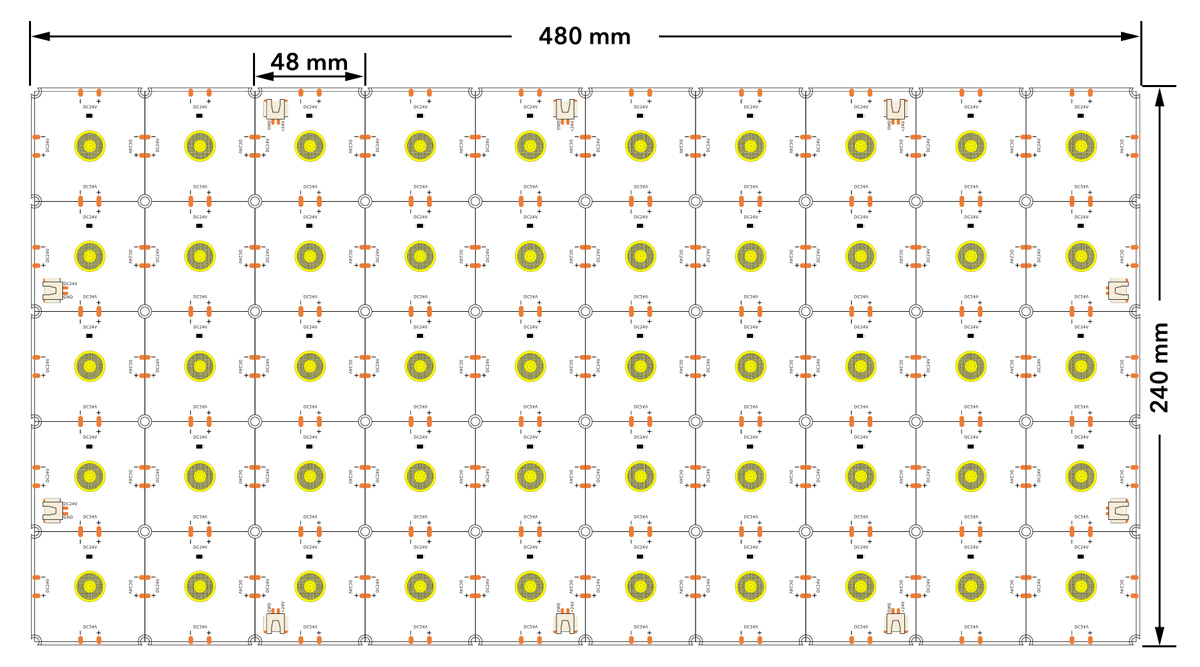

PRODUCTION DIMENSION



MODEL: SPN-L23V24S50WxxPxx SERIES
